1. Description
The Microchip Technology Inc. MCP6L01RT-E/OT family of operational amplifiers (op amps) supports general purpose applications. The combination of railto-rail input and output, low quiescent current and bandwidth fit into many applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and a low 85 µA per amplifier quiescent current. These op amps operate on supply voltages between 1.8V and 6.0V, with rail-to-rail input and output swing. They are available in the extended temperature range.
2. Features
1. Available in SC70 and SOT-23 Packages
2. Gain Bandwidth Product: 1 MHz (typical)
3. Rail-to-Rail Input/Output
4. Supply Voltage: 1.8V to 6.0V
5. Supply Current: IQ = 85 µA/Amplifier (typical)
6. Extended Temperature Range: -40°C to +125°C
7. Available in Single, Dual and Quad Packages
3. Typical Applications
1. Portable Equipment
2. Photodiode Amplifier
3. Analog Filters
4. Notebooks and PDAs
5. Battery-Powered Systems

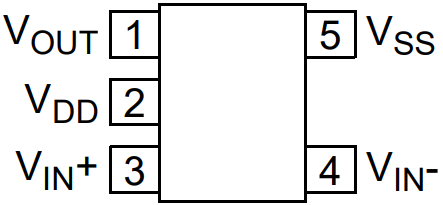

4. Pin configuration
5. Design aid
1. SPICE macromodel
2. FilterLab® software
3. Microchip Advanced Part Selector (MAPS)
4. Analog demo and evaluation boards
5. Application Notes
6. Application Information
The MCP6L01RT-E/OT family of operational amplifiers are fabricated using Microchip's state-of-the-art CMOS process. It is designed for low cost, low power and general purpose applications. low supply voltage, Low quiescent current and wide bandwidth make the MCP6L01/1R/1U/2/4 ideal for battery powered applications. The device features high phase margin, making it stable in applications with larger capacitive loads.
