MF-MSMF110/16-2 Circuit Protection

Technical Details

• Series:Multifuse®, MF-MSMF
• Packaging:Tape & Reel (TR)
• Lead Free Status / RoHS Status:--
• RoHS Status:RoHS Compliant
• Part Status:Active
• Moisture Sensitivity Level (MSL):--
• Type:Polymeric
• Voltage - Max:16V
• Current - Max:100A
• Current - Hold (Ih) (Max):1.1A
• Current - Trip (It):2.2A
• Resistance - 25°C (Typ):--
• Time to Trip:300ms

• Resistance - Initial (Ri) (Min):40 mOhms
• Resistance - Post Trip (R1) (Max):210 mOhms
• Operating Temperature:-40°C ~ 85°C
• Ratings:AEC-Q200
• Mounting Type:Surface Mount

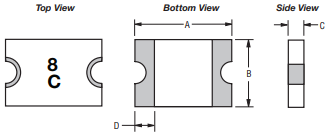

• Package / Case:1812 (4532 Metric), Concave
• Size / Dimension:0.179" L x 0.128" W (4.55mm x 3.24mm)
• Height - Seated (Max):--
• Thickness (Max):0.033" (0.85mm)
• Lead Spacing:--
• Approvals:cURus, TUV
