1. Describe
This series of Zener diodes are packaged on the surface of SOD−323 Mounted package with 300 mW power dissipation. they are Designed to provide voltage protection, especially Attractive when space is at a premium. they are very good Suitable for such as cellular phones, handheld portable devices, And high-density PC board.
2. Feature
1. Standard Zener breakdown voltage range − 3.3 V to 36 V
2. 300 mW steady state power rating
3. Small body size:
− 0.067 inches x 0.049 inches (1.7 mm x 1.25 mm)
4. Low ride height: 0.035 inches (0.9 mm)
5. Package weight: 4.507 mg/unit
6. Class 3 (> 16 kV) ESD ratings for each human body model
7. Strict tolerance VZ
8. SZ prefix, suitable for automobiles and other applications that require uniqueness Site and control change requirements; AEC-Q101 qualified and PPAP capability
9. These devices are lead-free, halogen-free/BFR-free and RoHS compliant Compliance*
3. Mechanical characteristics
1. Surface treatment: all outer surfaces are corrosion-resistant
2. Maximum shell temperature for welding: 260°C 10 seconds
3. Lead: tin-plated or tin-only (lead-free)
4. POLARITY: The cathode is indicated by the polarity band
5. Flammability rating: UL 94 V−0
6. Installation location: any

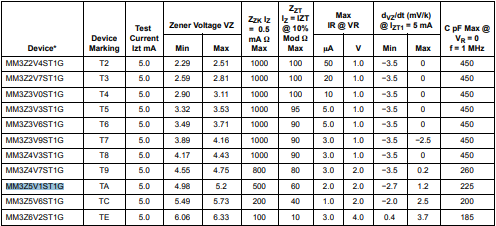

4. Electrical characteristics
5. Package overview
