Can ship immediately
Description
Zener printer SOD-323 Install the package, the energy consumption is 300 mW. they are Designed to provide voltage regulation, especially Attractive when space is limited. they are very good Suitable for cellular phones, portable portable devices, High-density computer board
Specifications and features:
1. Standard voltage range is 2.4 V to 75 V
2. Nominal power 300 mW in stable condition
3. Dimensional body: 0.067 MYR x 0.049 MYR (1.7mm x 1.25mm)
4. Low drive height: 0.95 inches (0.9mm)
5. Product: 4,507 mg / unit
6. ESD protection class 3 (> 16 kV)
7. Suitable for cars and other unique SZ prefixes Requirements for changing the site and control; passed the AEC-Q101 certification СPPAP
8. These devices without lead
Mechanical characteristics:
Case: Sheathless, transferred molded plastic
Finishing works: all external surfaces are resistant to corrosion
Maximum body temperature for welding: 260 ° C10 seconds
Lead: Pb-Sn or Sn only (without Pb-)
Polarity: the cathode indicated by the strippolarity
Specification: UL 94 V-0
Place of installation: Any

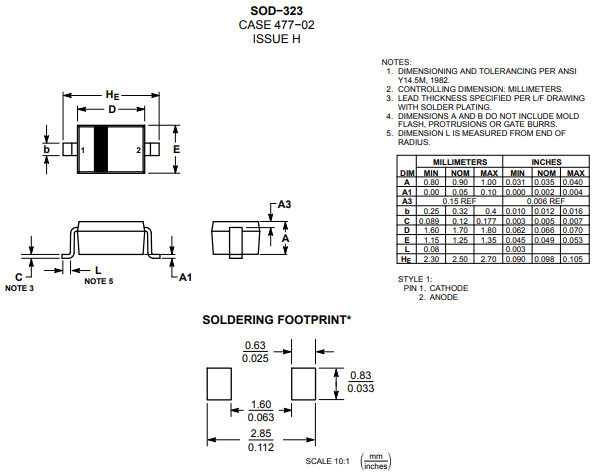

PACKAGE DIMENSIONS
