1. Features
1. Low Collector-Emitter Saturation Voltage, VCE(sat)
2. Ultra-Small Leadless Surface Mount Package
3. Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
4. Halogen and Antimony Free. “Green” Device (Note 3)
5. Qualified to AEC-Q101 Standards for High Reliability
2. Mechanical Data
1. Case: X2-DFN1006-3
2. Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminals: Finish ⎯ NiPdAu over Copper leadframe. Solderable per MIL-STD-202, Method 208
5. Weight: 0.0009 grams (Approximate)

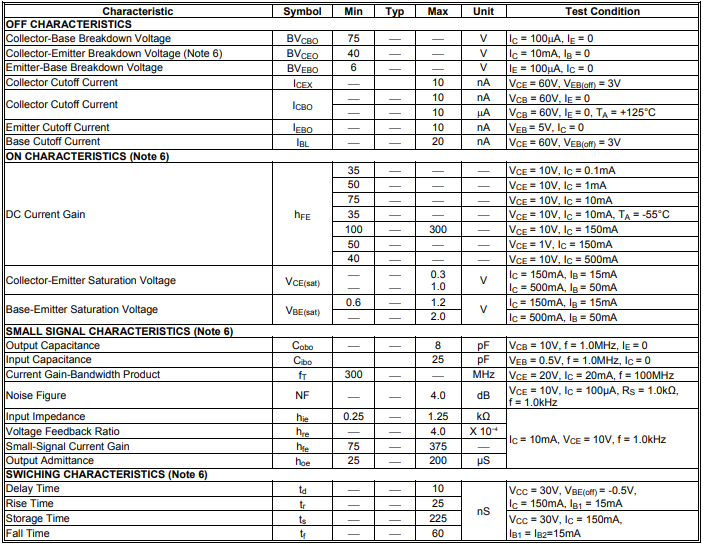

3. Electrical Characteristics
4. Package Outline Dimensions
