1. Features
1. 500mW Power Dissipation
2. General Purpose, Medium Current
3. Ideally Suited for Automated Assembly Processes
4. Totally Lead-Free & Fully RoHS Compliant
5. Halogen and Antimony Free. “Green” Device
6. Qualified to AEC-Q101 Standards for High Reliability
2. Mechanical Data
1. Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
2. Moisture Sensitivity: Level 1 per J-STD-020
3. Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
4. Polarity: Cathode Band
5. Weight: 0.01 grams (Approximate)

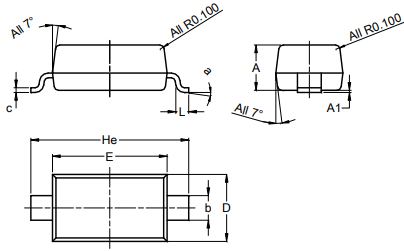

3. Package dimensions

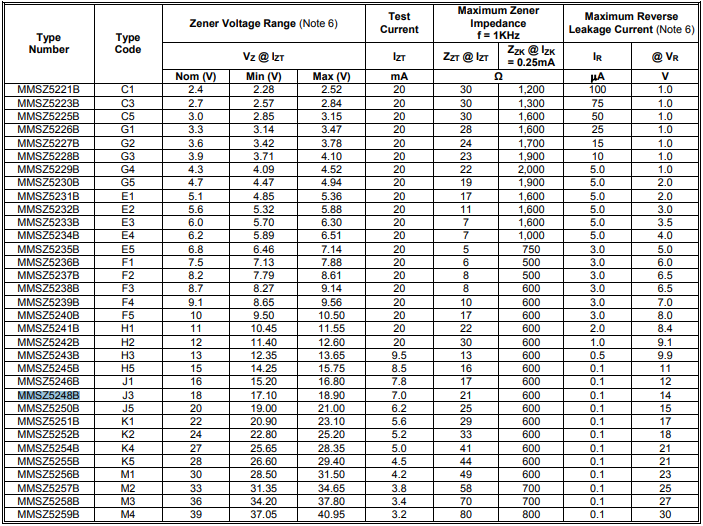

4. Electrical Characteristics
