1. Description
MP2013AGQ-33-P is a low-power linear regulator Provides power to systems with high-voltage batteries. It includes a wide range from 2.5V to 40V Input range, low dropout voltage and low quiescent supply current. Low static Current and low dropout allow operation At extremely low power levels. MP2013AGQ-33-P is Ideal for low-power microcontrollers Battery-powered equipment. MP2013AGQ-33-P provides a variety of fixing methods, Output voltage options: 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V and 5.0V, it provides Adjustable output options (1.215V to 15V). The output current of the regulator is limited internally; Protect equipment from overload and Conditions of excessive temperature. MP2013AGQ-33-P includes thermal shutdown (TSD) And current-limiting fault protection. it is Provide QFN6 (2mmx2mm) and QFN8 (3mmx3mm) package
2. FEATURES
1. 2.5V to 40V Input Range
2. 3.3µA Quiescent-Supply Current
3. Stable with Low-Value Output Ceramic Capacitor (> 0.47 μF)
4. 150mA Specified Current
5. 620mV Dropout at 150mA Load
6. Available in Fixed and Adjustable Output (1.215 V to 15 V) Versions
7. ±2% Output Accuracy
8. Specified Current Limit
9. Thermal Shutdown
10. -40°C to +125°C Specified JunctionTemperature Range
11. Available in QFN6 (2x2mm), and QFN8 (3x3mm) Packages
3. APPLICATIONS
1. Industrial/Automotive Applications
2. Portable/Battery-Powered Equipment
3. Ultra Low-Power Microcontrollers
4. Cellular Handsets
5. Medical Imaging
4. PACKAGE REFERENCE
5. TYPICAL APPLICATION

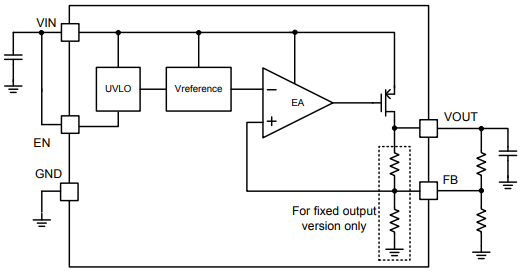

6. Functional Block Diagram

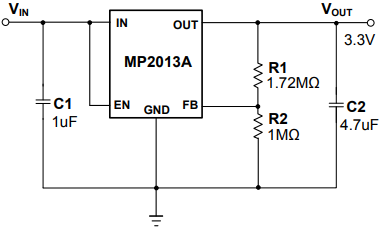

7. TYPICAL APPLICATION CIRCUITS

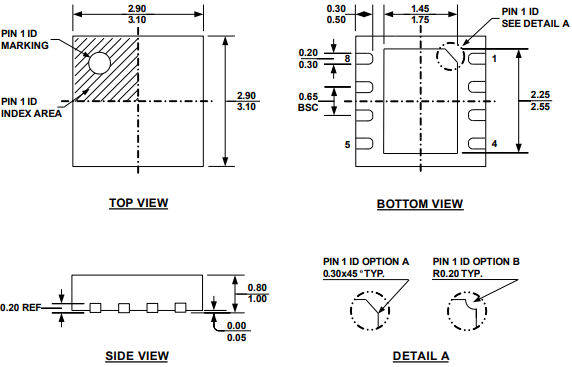

8. PACKAGE INFORMATION
