MP2013AGQ-33-Z

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. DESCRIPTION

The MP2013AGQ-33-Z is a low-power, linear regulator that supplies power to systems with highvoltage batteries. It includes a wide 2.5V to 40V input range, low-dropout voltage and lowquiescent-supply current. The low- quiescent current and low-dropout voltage allow operation at extremely low-power levels. The MP2013A is ideal for low-power microcontrollers and battery-powered equipment. The MP2013A provides a wide variety of fixed, output-voltage options: 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V, and 5.0V, and it provides an adjustable output option (from 1.215V to 15V). The regulator output current is internally limited; the device is protected against over load and over-temperature conditions. The MP2013A includes thermal shutdown (TSD) and current-limiting fault protection. It is available in QFN6 (2mmx2mm), and QFN8 (3mmx3mm) packages

2. FEATURES

    1. 2.5V to 40V Input Range

    2. 3.3µA Quiescent-Supply Current

    3. Stable with Low-Value Output Ceramic Capacitor (> 0.47 μF)

    4. 150mA Specified Current

    5. 620mV Dropout at 150mA Load

    6. Available in Fixed and Adjustable Output (1.215 V to 15 V) Versions

    7. ±2% Output Accuracy

    8. Specified Current Limit

    9. Thermal Shutdown

  10. -40°C to +125°C Specified JunctionTemperature Range

  11. Available in QFN6 (2x2mm), and QFN8 (3x3mm) Packages

3. PPLICATIONS

    1. Industrial/Automotive Applications

    2. Portable/Battery-Powered Equipment

    3. Ultra Low-Power Microcontrollers

    4. Cellular Handsets

    5. Medical Imaging

4. Operation

MP2013AGQ-33-Z is a linear regulator that can provide Provides power to systems with high-voltage batteries. it Includes wide input range from 2.5V to 40V, low dropout voltage and low static power supply current. MP2013A provides a variety of fixed, Output voltage options: 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V, 5.0V; it provides a Adjustable output options (from 1.215V to 15V). Adjustable output options provide output Adjustable from 1.215V to 15V Simple resistor divider. It uses external Feedback, allowing the user to set the output Voltage divider with external resistance. this The typical FB voltage is 1.215V. When EN is low, the IC enters shutdown mode. In shutdown mode, through the transistor, control Circuit, reference and all biases are off, Reduce the supply current to <3µA. connect EN to IN are used for automatic start. The output current of the regulator is internally limited. The device has overload protection and Over-temperature conditions. The peak output current is limited to approximately 270mA, more than 150mA Recommended continuous output current. When the junction temperature is too high, The thermal sensor sends a signal to the controller Turn off the logic of the IC. IC restart When the temperature is sufficiently cooled down. The maximum power output current is Function of package maximum power Dissipation at a given temperature. The maximum power consumption depends on Regarding the thermal resistance of the housing and Circuit board, temperature difference Between the chip node and the ambient air, And the air flow rate. GND and exposed The pad must be connected to the ground plane Appropriate dissipation.

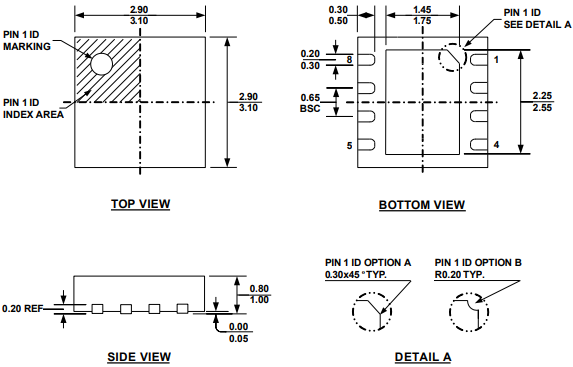

5. Package overview
