MT48LC32M16A2TG-75:IT:C

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

MT48LC32M16A2TG-75:IT:C is a high-speed CMOS, dynamic random access memory, containing 536,870,912 bits. The internal configuration is four sets of synchronous interface DRAM. Each of the 134,217,728 bit groups of x4 is organized as 8192 rows x 4096 columns x 4 A small amount. Each 134,217,728 bit x8 group is organized into 8192 rows x 2048 columns, each with 8 bits. Each 134,217,728 bit x16 group is organized into 8192 rows x 1024 columns x 16 bits. SDRAM read and write access is burst-oriented; access starts from the selected Locate and continue to program the numbered position in the programming sequence. Access starts with the registration of the ACTIVE command, followed by the READ or WRITE command. Registered address bit and The ACTIVE command is used to select the bank and row to be accessed (BA[1:0] select Bank; A[12:0] selection line). The registered address bit is the same as READ or The WRITE command is used to select the starting column position of burst access. SDRAM provides programmable read or write burst length (BL) of 1, 2, 4 or 8 Position or full page, with burst termination option. Automatic pre-charging function Can be enabled to provide self-timed line pre-charging, which starts at the end Burst sequence. 512Mb SDRAM uses internal pipeline architecture to achieve high-speed operation. This architecture is compatible with the 2n rule of the prefetch architecture, but it It also allows the column address to be changed every clock cycle to achieve high-speed, completely random access. Pre-charge another bank while visiting another bank These three banks will hide the PRECHARGE cycle and provide seamless, high-speed, random access operations. The 512Mb SDRAM is designed to run in a 3.3V storage system. Auto Refresh Provide modes, as well as power-saving and power-down modes. All inputs and outputs are compatible with LVTTL. SDRAM significantly improves DRAM operating performance, including Ability to synchronize burst data at high data rates through automatic column addresses Generation, the ability to stagger between internal banks to hide the pre-charge time, and The ability to randomly change the column address every clock cycle during the burst Right to use.

2. Feature

    1. Compliant with PC100 and PC133

    2. Fully synchronized; all signals are recorded in the active System clock edge

    3. Internal pipeline operation; column address can be Change every clock cycle

    4. Internal library for hidden row access/precharge

    5. Programmable burst length: 1, 2, 4, 8 or full page

    6. Automatic pre-charging, including concurrent automatic pre-charging And auto refresh mode

    7. Self-refresh mode

    8. Auto Refresh

        – 64 milliseconds, 8192 periodic refresh (commercial and industrial)

    9. LVTTL compatible input and output

  10. Single 3.3V ±0.3V power supply

3. Pin assignment

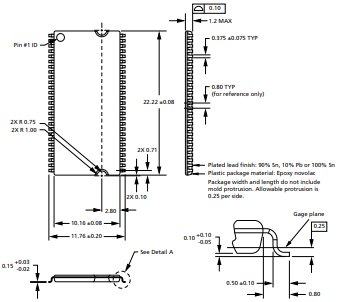

4. Package Dimensions
