1. Features
1. Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
2. 175°C Operating Junction Temperature
3. Low Forward Voltage
4. Low Leakage Current
5. High Temperature Glass Passivated Junction
6. Reverse Voltage to 600 V
7. Shipped in Plastic Bags, 500 per Bag
8. Available in Tape and Reel, 1500 per Reel, by Adding a "RLG" Suffix to the Part Number
9. MUR460 available in Fan Fold Ammo Pak, 1000 per Box, by adding a “FFG” suffix to the part number
10. These are Pb−Free Packages*
2. Mechanical Characteristics
1. Case: Epoxy, Molded
2. Weight: 1.1 Gram (Approximately)
3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
4. Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
5. Polarity: Cathode indicated by Polarity Band

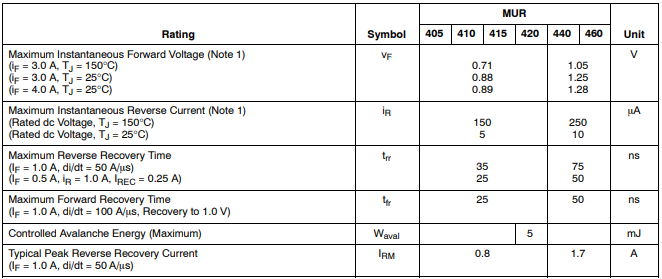

3. ELECTRICAL CHARACTERISTICS

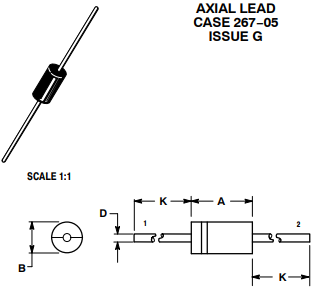

4. PACKAGE DIMENSIONS
