1. Describe
Very suitable for high-voltage, high-frequency rectification, or as Freewheeling and protection diodes in surface mount applications Compact size and weight are critical to the system.
2. Features
1. Small Compact Surface Mountable Package with J−Bend Leads
2. Rectangular Package for Automated Handling
3. High Temperature Glass Passivated Junction
4. Low Forward Voltage Drop (0.71 to 1.05 V Max @ 1.0 A, TJ = 150°C)
5. NRVUS and SURS8 Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
6. These Devices are Pb−Free and are RoHS Compliant
3. Mechanical Characteristics
1. Case: Epoxy, Molded
2. Weight: 95 mg (Approximately)
3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
4. Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
5. Polarity: Polarity Band Indicates Cathode Lead
6. ESD Rating:
- Human Body Model = 3B (> 8 kV)
- Machine Model = C (> 400 V)

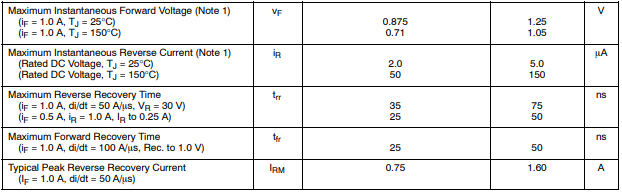

4. Electrical characteristics
5. Package dimensions
