1. Description
PolySwitch surface mount devices are effective circuits Computer, consumer, multimedia protection method Portable and automotive electronics applications. In order to reduce the size and cost of surface mount equipment, the Littelfuse PolySwitch team launched In 1995, the miniSMD product series was launched. Subsequently, We have developed microSMD, nanoSMD, picoSMD and femtoSMD series products. femtoSMD series Reduce the equipment size to 1608mm (0603 mils) Covers an area of one-twelfth of the popular version miniSMD series. The latest product in the PolySwitch surface mount series Including 1.1A picoSMD 1210mm (0805 mils) and 0.35A
femtoSMD 1608mm (0603 mils) equipment.
2. benefit
1. Smaller size helps save board space and cost
2. Many product options optimize design flexibility
3. Compatible with mass electronic assembly
4. Assist in meeting regulatory requirements
5. Higher rated voltage allows use in new applications
3. Features
1. RoHS compliant
2. Halogen free (Referring to: Br≥900ppm, Cl≥900ppm, Br +Cl≥1500ppm)
3. The widest range of resettable devices industry
4. Rated current from 0.05 to 3.1A
5. 6V rated voltage of computer and electronic equipment Applied to 60V telecom applications
6. Agency recognition: UL, CSA, TÜV
7. Small footprint
8. Fast travel time
9. Low resistance
4. Application field
1. Computer
2. Portable electronics
3. multimedia
4. Game console
5. Telephone and broadband
6. mobile phone
7. car
8. industrial control
9. battery
5. Maximum Electrical Rating
1. Voltage: 48VDC
2. Short Circuit Current: 10A

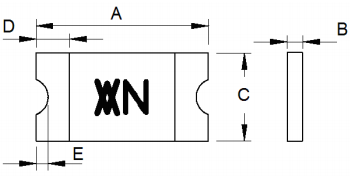

6. Dimension Figures
