1. Describe
The NCP114AMX280TCG is a 300 mA LDO that provides engineers with very Stable, accurate voltage and low noise for space - constrained environments, noise sensitive applications. To optimize performance battery powered portable applications, the NCP114 uses Dynamic quiescent current scaling for very low IQ consumption at empty.
2. Feature
1. Operating input voltage range: 1.7 V to 5.5 V
2. Fixed voltage options available: 0.75 V to 3.6 V Contact factory for other voltage options
3. Very low typical quiescent current. 50A
4. Standby Current Consumption: Typical. 0.1 A
5. Low dropout: 135 mV typical at 300 mA
6. ±1% accuracy at room temperature
7. High power supply ripple rejection: 75 dB at 1 kHz
8. Thermal shutdown and current limit protection
9. Stable with 1 F ceramic output capacitor
10. Available in UDFN and TSOP packages
11. These are lead-free devices
3. Application
1. PDA, cell phone, GPS, smartphone
2. Wireless Handset, Wireless LAN, Bluetooth®, Zigbee®
3. Portable medical equipment
4. Other battery powered applications
4. pin connection

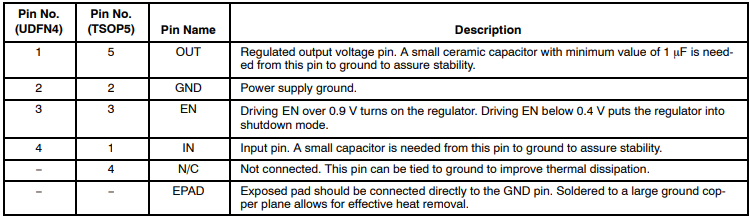

5. PIN DESCRIPTION
