1. Description
NCV4263-2CD250R2G is a 200 mA LDO regulator with integrated reset function Watchdog function dedicated to microprocessor applications. its Robustness allows NCV4263-2C to be used in heavy vehicles surroundings. The enable function can be used to reduce The quiescent current is as low as 10A max. NCV4263-2C contains Protection function used as current limit, thermal shutdown and reverse Output current protection. The regulator also provides watchdogs, Reset function with adjustable threshold and adjustable boot function Reset the delay time.
2. Features
1. Output Voltage Option: 5 V
2. Output Voltage Accuracy: ±2%
3. Output Current up to 200 mA
4. Very Low Dropout Voltage
5. Enable Function (10 A Max Quiescent Current when Disabled)
6. Microprocessor Compatible Control Functions:
− Reset with Adjustable Threshold and Adjustable Power−on Delay
− Watchdog Function
7. Wide Input Voltage Operation Range: up to 40 V
8. Protection Features:
− Current Limitation
− Thermal Shutdown
− Reverse Output Current
9. AEC−Q100 Grade 1 Qualified and PPAP Capable
10. These are Pb−Free Devices
3. Application field
1. Body Control Module
2. Instruments and dashboards
3. Occupant protection and comfort
4. Powertrain
4. Pin Connections

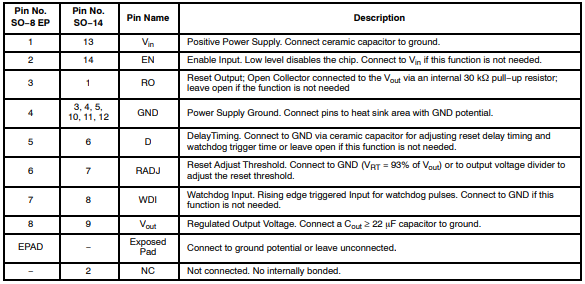

5. PIN FUNCTION DESCRIPTION

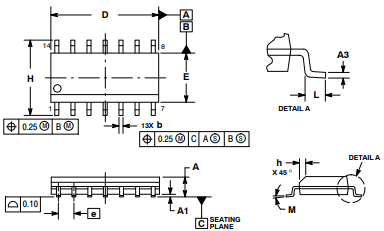

6. PACKAGE DIMENSIONS
