Can ship immediately
Features
1. 600W Peak Pulse Power Dissipation
2. Voltage Range 6.8V - 400V
3. Constructed with Glass Passivated Die
4. Uni- and Bidirectional Versions Available
5. Excellent Clamping Capability
6. Fast Response Time
7. Lead Free Finish, RoHS Compliant (Note 1)
Mechanical Data
1. Case: DO-15
2. Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Leads: Plated Leads, Solderable per MIL-STD-202, Method 208
5. Marking: Unidirectional - Type Number and Cathode Band
6. Marking: Bidirectional - Type Number Only
7. Ordering Information: See Page 4
8. Weight: 0.4 grams (approximate)

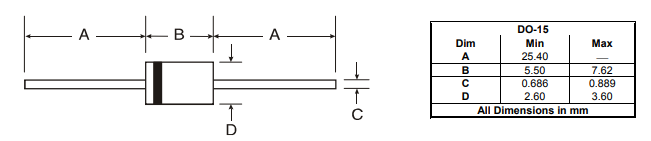

Package Outline Dimensions
