1. FEATURES
1. Glass passivated junction
2. 600W peak pulse power capability at 1.0ms
3. Excellent clamping capability
4. Low incremental surge resistance
5. Fast response time: Typically < 1.0ps from 0 V to BV for uni-directional, 5.0 ns for bidirectional
6. Typical IR: 1.0μA above 10V
2. APPLICATIONS
1. Devices for bipolar applications
2. Bi-directional types use CA suffix
3. Electrical characteristics apply in both directions

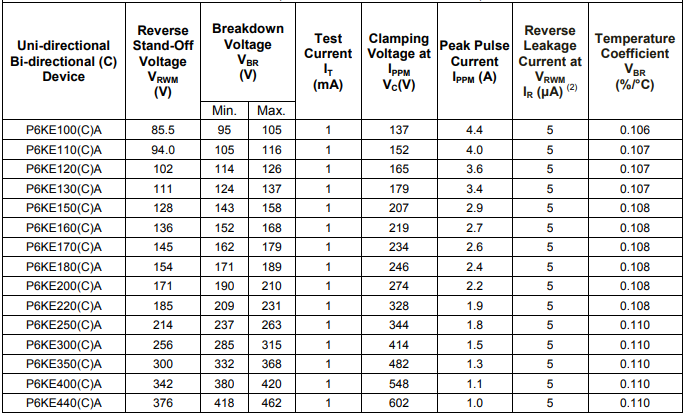

3. ELECTRICAL SPECIFICATIONS

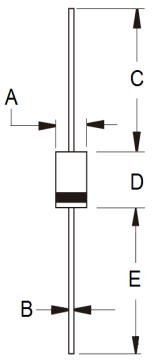

4. PACKAGE OUTLINE DIMENSIONS
