1. Describe
Low capacitance unidirectional dual electrostatic discharge (ESD) protection diodes in SOT23 (TO-236AB) small surface mount device (SMD) plastic package designed to protect up to two signal lines from damage from ESD and other transients .
2. Feature
1. Unidirectional ESD protection for both lines
2. Low diode capacitance: Cd = 17 pF
3. Maximum. Peak Pulse Power: PPP = 160 W
4. Low clamping voltage: VCL = 55 V
5. Ultra-low leakage current: IRM ≤ 1 uA
6. ESD protection up to 30 kV
7. IEC 61000-4-2; Class 4 (ESD)
8. IEC 61000-4-5 (Surge); IPP = 2.5 A
9. AEC-Q101 qualified
3. Application
1. Computers and Peripherals
2. Audio and video equipment
3. Cell phones and accessories
4. SIM card protection
5. Portable electronics
6. Communication system
7. 10/100 Mbit/s Ethernet
4. Pin configuration

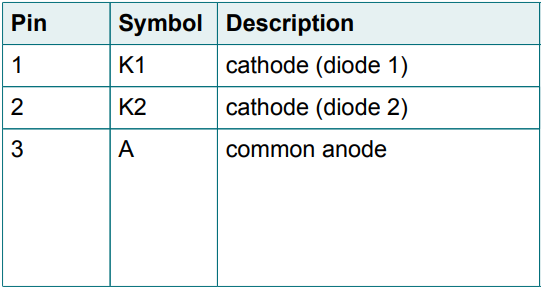

5. Pin Description
6. Application Information
The PESD36VS2UT is designed to protect up to two unidirectional data or signal lines from damage caused by ESD and surge pulses. These devices can be used on lines where the signal polarity is positive or negative with respect to ground. The PESD36VS2UT provides 160 W per line surge capability for 8/20 µs waveforms.
