1. Description
Low capacitance dual bidirectional electrostatic discharge (ESD) protection diode SOT23 Small Surface Mount Device (SMD) plastic package designed to protect two Damage to signal lines caused by ESD and other transients.
2. Feature
1. ESD protection of two lines
2. Maximum peak pulse power: PPP = 350 W
3. Low clamping voltage: VCL = 26 V
4. Small SMD plastic package
5. Ultra-low leakage current: IRM <90 nA
6. ESD protection up to 23 kV
7. IEC 61000-4-2, Level 4 (ESD)
8. IEC 61000-4-5 (surge); IPP = 15 A
3. Application
1. Computer and peripheral equipment
2. Audio and video equipment
3. Mobile phones and accessories
4. Communication system

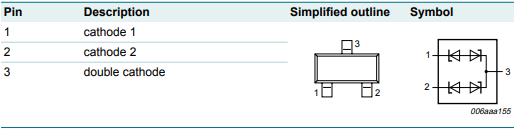

4. product information
5. Package outline
