PMBTA42,215

Nexperia USA Inc.
PMBTA42,215 HongDa Electronics PMBTA42,215
  • Manufacturer Part# PMBTA42,215
  • Product CategoryDiscrete Semiconductor Products
  • Short DescriptionTRANS NPN 300V 0.1A SOT23Bipolar (BJT) Transistor ...
  • More DetailN/A
In Stock: 1000

Can ship immediately

Datasheet:
PMBTA42,215 Datasheet

Technical Details

  • Series:Automotive, AEC-Q101
  • Packaging:Tape & Reel (TR)
  • FET Type:--
  • Part Status:Active
  • Technology:Si
  • Transistor Type:NPN
  • Drain to Source Voltage (Vdss):--
  • Current - Collector (Ic) (Max):100mA
  • Current - Continuous Drain (Id) @ 25°C:--
  • Voltage - Collector Emitter Breakdown (Max):300V
  • Drive Voltage (Max Rds On, Min Rds On):--
  • Vce Saturation (Max) @ Ib, Ic:500mV @ 2mA, 20mA
  • Rds On (Max) @ Id, Vgs:--
  • Current - Collector Cutoff (Max):100nA (ICBO)
  • Vgs(th) (Max) @ Id:--



  • DC Current Gain (hFE) (Min) @ Ic, Vce:40 @ 30mA, 10V
  • Gate Charge (Qg) (Max) @ Vgs:--
  • Power - Max:250mW
  • Vgs (Max):--
  • Frequency - Transition:50MHz
  • Input Capacitance (Ciss) (Max) @ Vds:--
  • Operating Temperature:150°C (TJ)
  • FET Feature:--
  • Mounting Type:Surface Mount
  • Power Dissipation (Max):--
  • Package / Case:TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package:TO-236AB (SOT23)
  • Base Part Number:PMBTA42

Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com


1. Description

     NPN high-voltage transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. PNP complement: PMBTA92.

2. Features

     1. High voltage (max. 300 V)

3. Applications

     2. Telephony and professional communication equipment

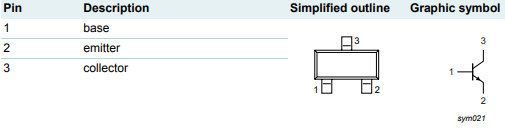

4. Pinning information

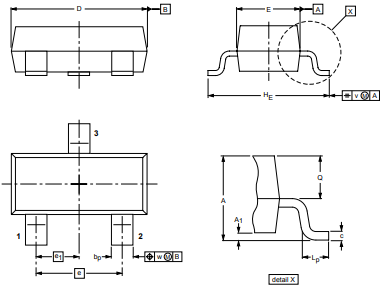

5. Package outline
