1. Describe
The high slew rate SiC transistor driver requires an isolated asymmetric power supply of +20/-5V or +15/-3V, with high isolation voltage and low isolation capacitance. The RxxP2xxyyD series specifically targets Designed to meet this demanding requirement with 6400VDC isolation and <10pF isolation capacitance. As long as the total power remains below 2W, the load on each output can be unequal. Built-in Transformers use tank cores to physically separate the input and output windings, but the converter still Fits industry standard SIP7 housing. A special function of the RxxP2xxyyD converter is the output power Sharing: They can be used for equal power (asymmetric current) or equal current (asymmetric Power) load. Provide 5, 12, 15 or 24V input voltage options, and the RxxP2xxyyD series are safe Pass the latest UL/IEC62368-1 standard certification.
2. Feature
1. +20/-5V and +15/-3V asymmetric output for SiC driver applications
2. Comply with 65kV/µs @ Vcommon mode =1KV
3. +15/-9V asymmetric output for IGBT driver applications
4. Tank core transformer with separate winding
5. High 6.4kVDC isolation in compact SIP7 size
6. Low isolation capacitance (maximum 10pF)
7. Optional continuous short circuit protection
8. IEC/EN/UL62368-1 certification

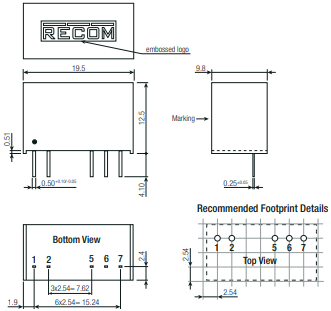

3. Package overview
