1. FEATURES
1. Low profile package
2. Ideal for automated placement
3. Glass passivated pellet chip junction
4. Low forward voltage drop
5. Low leakage current
6. High forward surge capability
7. Meets MSL level 1, per J-STD-020,LF maximum peak of 260 °C

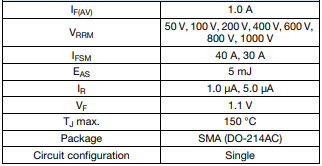

2. PRIMARY CHARACTERISTICS
3. MECHANICAL DATA
1. Molding compound meets UL 94 V-0 flammability rating
2. Base P/N-E3 - RoHS-compliant, commercial grade
3. Base P/N-M3 - halogen-free, RoHS-compliant, commercialgrade
4. Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
5. Base P/NHM3_X - halogen-free, RoHS-compliant and AEC-Q101 qualified
6. Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102
7. E3, M3, HE3, and HM3 suffix meets JESD 201 class 2 whisker test

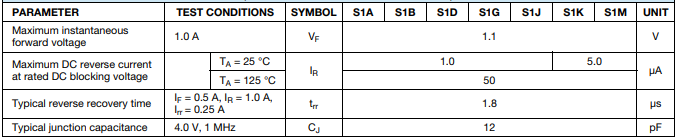

4. ELECTRICAL CHARACTERISTICS
5. TYPICAL APPLICATIONS
For use in general purpose rectification of power supplies,inverters, converters and freewheeling diodes for consumer,automotive, and telecommunication.
