Can ship immediately
Feature
1. Low-profile packaging
2. Ideal for automatic placement
3. Glass passivation particle chip junction
4. Low forward pressure drop
5. Low leakage current
6. High forward surge capability
7. Complies with MSL level 1, according to J-STD-020, the maximum peak value of LF is 260 °C

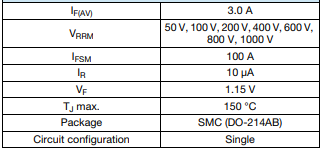

PRIMARY CHARACTERISTICS
Mechanical data
1. Molding compound meets UL 94 V-0 flammability rating
2. Basic P/N-E3-RoHS compliant, commercial grade
3. Basic P/N-M3- halogen-free, RoHS compliant, commercial grade
4. Basic P/NHE3_X-RoHS compliance and AEC-Q101 certification
5. Base P/NHM3_X-Halogen free, RoHS and compliant AEC-Q101 qualified
6. Terminal: matte tinned lead wire, solderable J-STD-002 and JESD 22-B102
7. E3, M3, HE3 and HM3 suffixes comply with JESD 201 category 2 Whisker test
Package overview

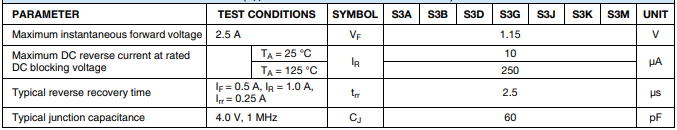

ELECTRICAL CHARACTERISTICS
