1. Describe
Portable communications, computing and video markets Equipment is challenging the development of the semiconductor industry Smaller and smaller electronic components. Bourns offers transient voltage suppression diodes for surge and ESD protection application, using compact chip package DO-214AC (SMA) Dimension format. The transient voltage suppressor series provides operating peak reverse voltage from 5 V to 495 V and The breakdown voltage is as high as 550 V. The typical fast response time of one-way equipment is less than 1.0 picoseconds and less than 5.0 The picosecond of a bidirectional device from 0 V to the minimum breakdown voltage. Bourns® chip diodes comply with JEDEC standards, easy to use standard pick and place equipment and flat configuration handling Minimize the roll-off.
2. Feature
1. Compliant with RoHS*
2. Surface mount SMA package
3. Isolation voltage: 5.0 to 495 volts
4. Power consumption: 400 watts
5. UL recognized
3. Application
1. IEC 61000-4-2 ESD (lowest level 4)
2. IEC 61000-4-4 EFT
3. IEC 61000-4-5 surge

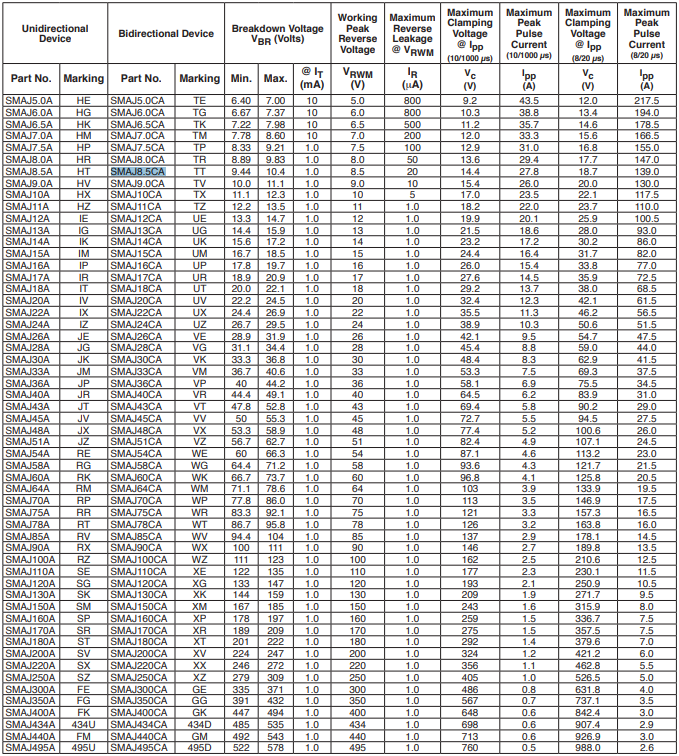

4. Electrical Characteristics
5. Package overview
