1. Description
Diodes Zetex's SMAZ5V1-13-F Zener diode is very suitable for circuits that require diodes to work in the reverse breakdown region. The test current is 100 mA. Its maximum power consumption is 1000 @ Ta = 50C mW. The maximum regulator current of this device is 196 mA. Its maximum leakage current is 2.5μA. The components will be shipped in tape-and-reel packaging for efficient installation and safe delivery. The Zener device has a rated voltage of 5.1 V and a voltage tolerance of 5%. The Zener diode has an operating temperature range of -65°C to 150°C. It is made in a single configuration.
2. Feature
1. 1.0W power consumption
2. Ideal for automated assembly
3. 5.1V-39V rated Zener voltage range
4. Standard VZ tolerance is ±5%
5. Lead-free surface treatment; RoHS compliant (Note 1 and Note 2)
6. Halogen and antimony free. "Green" equipment (Note 3)
3. Mechanical data
1. Case: SMA
2. Housing material: molded plastic. UL flammability classification grade 94V-0
3. Moisture sensitivity: Level 1 of J-STD-020
4. Terminals: Lead-free plating (matte tin surface treatment). Solderable MIL-STD-202, Method 208
5. Polarity: Cathode notch or cathode band
6. Weight: 0.064 grams (approximately)

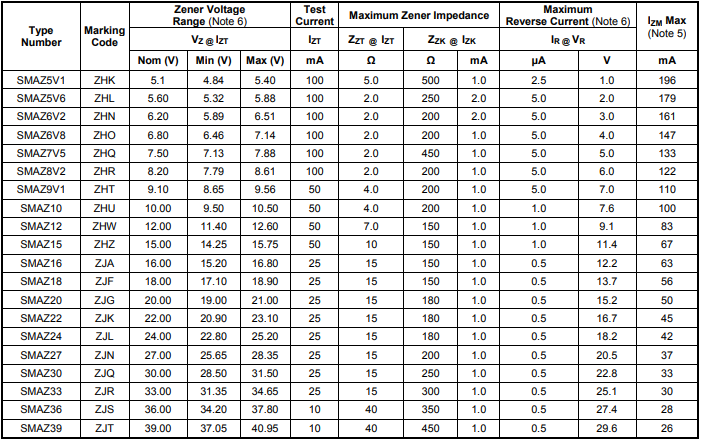

4. Electrical Characteristics(@TA = +25°C, unless otherwise specified.)
5. Package Outline Dimensions
