1. Features
1. 600W Peak Pulse Power Dissipation
2. 5.0V to 200V Standoff Voltages
3. Glass Passivated Die Construction
4. Uni- and Bi-Directional Versions Available
5. Excellent Clamping Capability
6. Lead-Free Finish; RoHS Compliant
7. Halogen and Antimony Free. “Green” Device
2. Mechanical Data
1. Case Material: Molded Plastic.
2. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminals: Lead Free Plating (Matte Tin Finish).
5. Solderable per MIL-STD-202, Method 208
6. Weight: 0.1 grams (Approximate)

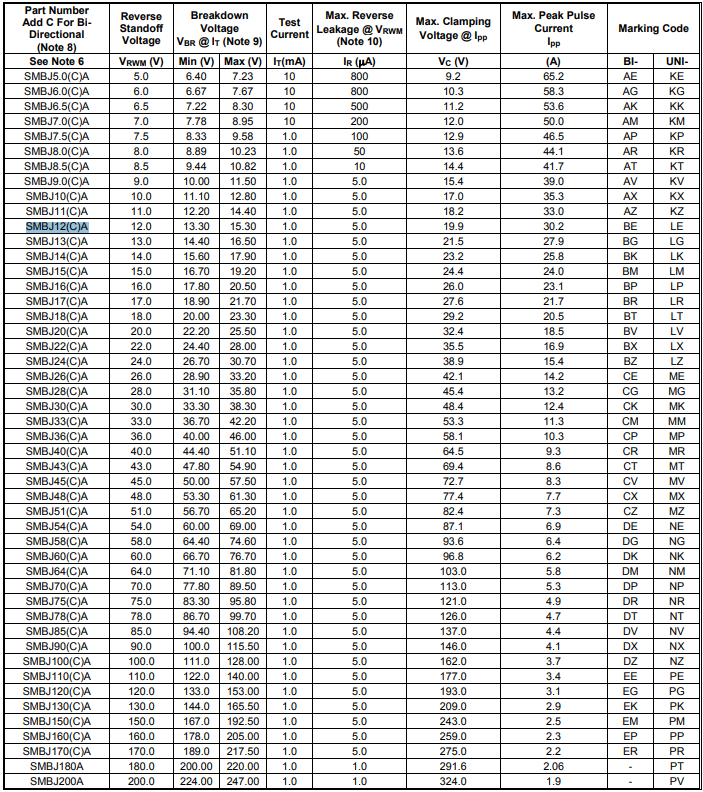

3. Electrical Characteristics
4. Package overview
