1. Description
SMBJ12CA are designed to protect sensitive electronics from damage or latch-up due to EOS, lightning, CDE, and ESD. They feature large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation. SMBJxxCA series may be used to protect 5V to 220V systems. They feature high surge current capability and high peak power rating, making them ideal for use in harsh transient environments.
2. Features
1. Protects one data or power line
2. Bidirectional
3. High peak pulse current capability
4. Operating voltage options: 5V to 220V
3. Applications
1. Industrial Equipment
2. Telecom/Datacom
4. Mechanical Characteristics
1. Case: Molded plastic
2. Case material: Molding compound, UL Flammability classification 94V-0, (No Br. Sb. Cl.)
3. RoHS/WEEE Compliant with applied RoHS exemption 7(a)
4. Halogen-free
5. Marking: Marking code + Date Code
6. Packaging: Tape and Reel
7. Weight: 0.003 ounce, 0.093 gram

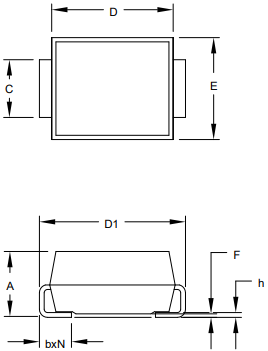

5. Pin configuration
