1. Description
Bourns offers transient voltage suppression diodes for surge and ESD protection Application, using compact chip package DO-214AA (SMB) size format. Transient voltage Suppressor series provide 5 V to 495 V working peak reverse voltage selection V and breakdown voltage are as high as 550 V. Typical fast response time is less than 1.0 One-way equipment is picoseconds, two-way equipment is less than 5.0 picoseconds From 0 V to the minimum breakdown voltage. Bourns® SMD diodes comply with JEDEC standards, easy-to-use standard selection When placing the equipment, the flat configuration minimizes roll-off.
2. Features
1. RoHS compliant*
2. Surface Mount SMB package
3. Standoff Voltage: 5 to 495 volts
4. Power Dissipation: 600 watts
3. Applications
1. IEC 61000-4-2 ESD (Min. Level 4)
2. IEC 61000-4-4 EFT
3. IEC 61000-4-5 Surge

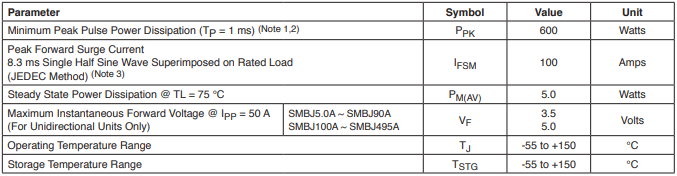

4. Electrical Characteristics
5. Product Dimensions

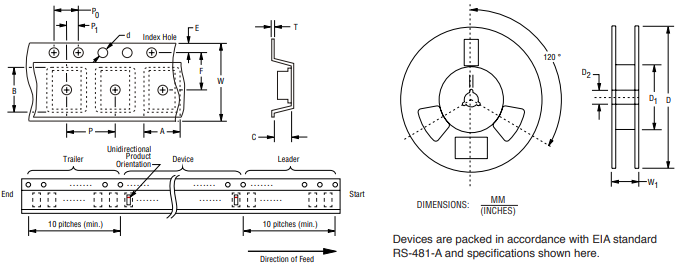

6. Packaging Information
