1. FEATURES
1. Ideal for automated placement
2. Glass passivated junction
3. Excellent clamping capability
4. Fast response time: Typically less than 1.0ps
5. Typical IR less than 1μA above 10V
6. Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)
7. Moisture sensitivity level: level 1, per J-STD-020
8. RoHS Compliant
9. Halogen-free according to IEC 61249-2-21
2. APPLICATIONS
1. Protect sensitive circuit from damage by high voltage transients
2. Lighting, ESD transient voltage protection of IC, system
2. Inductive switching load protection of IC, system
3. Electrical Fast Transient Immunity protection of IC, system
3. MECHANICAL DATA
1. Case: DO-214AA (SMB)
2. Molding compound meets UL 94V-0 flammability rating
3. Terminal: Matte tin plated leads, solderable per J-STD-002
4. Meet JESD 201 class 2 whisker test
5. Polarity: As marked
6. Weight: 0.090g (approximately)

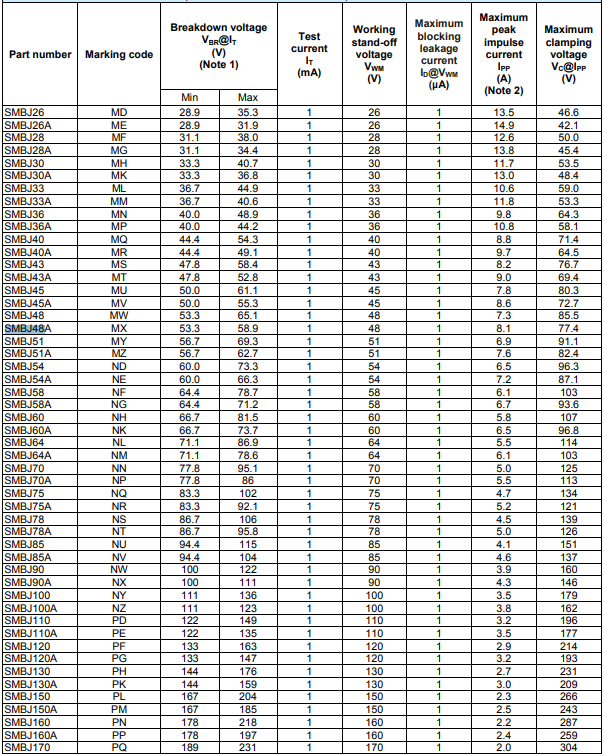

4. ELECTRICAL SPECIFICATIONS
5. Package overview
