1. Describe
The portable communication, computing and video equipment market is challenging the development of the semiconductor industry Smaller and smaller electronic components. Bourns provides transient voltage suppression diodes for surge and ESD protection applications in a compact chip package DO-214AB (SMC) size format. The transient voltage suppressor series provides a choice of operating peak reverse voltages from 5 V to 495 V and breakdown voltages up to 550 V. The typical fast response time of a unidirectional device is less than 1.0 picoseconds, and the typical fast response time of a two-way device is less than 5.0 picoseconds, from 0 V as the minimum breakdown voltage. Bourns® chip diodes comply with JEDEC standards and are easy to handle with standard pick and place equipment, and their flat configuration minimizes rolling.
2. Feature
1. Comply with RoHS*
2. Surface mount SMC package
3. Isolation voltage: 5.0 to 495 volts
4. Power consumption: 1500 watts
3. Application
1. IEC 61000-4-2 ESD (minimum level 4)
2. IEC 61000-4-4 EFT
3. IEC 61000-4-5 surge

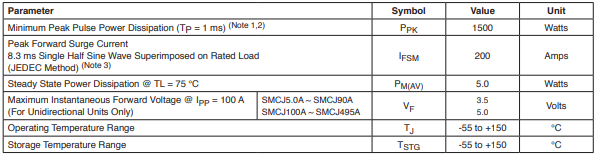

4. Electrical Characteristics

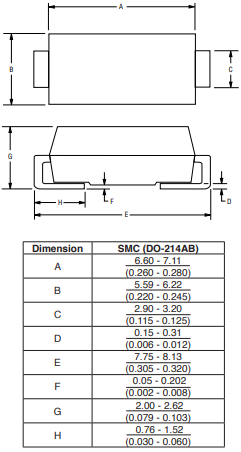

5. Product Dimensions
