1. Description
The SMDA05C.TBT arrays are designed to provide bidirectional protection for sensitive electronics from damage or latch-up due to ESD, lightning and other voltage-induced transient events. Each device will protect four data or I/O lines. They are available with operating voltages of 5V.TVS diodes are solid-state devices designed specifically for transient suppression. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation. The low profile S0-8 package allows the user to protect up to four independent lines with one package. The SMDA05C series is suitable protection for sensitive semiconductors components such as microprocessors, ASICs, transceivers, transducers, and CMOS memory.The SMDA05C series devices may be used to meet the ESD immunity requirements of IEC 61000-4-2, level 4 for air and contact discharge.
2. Feature
1. Transient protection of data lines
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5 / 50ns)
- IEC 61000-4-5 (lightning) 12A (8 / 20µs) bidirectional protection
2. SO-8 small package
3. Protect four I/O lines
4. Working voltage: 5V
5. Low leakage current
6. Low operating voltage and clamping voltage
7. Solid-state silicon avalanche technology
3. Application field
1. data and I/O Lines
2. Microprocessor based equipment
3. Notebooks,Desktops,and servers
4. Pin configuration

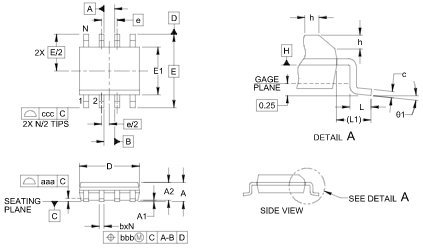

5. Packaging Information
