1. Description
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
2. Features
1. Wide Operating Voltage Range of 2 V to 6 V
2. High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads
3. Low Power Consumption, 80-μA Max ICC
4. Typical tpd = 12 ns
5. ±6-mA Output Drive at 5 V
6. Low Input Current of 1 μA Max
7. On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
3. Pin Configuration
4. Applications
1. Servers
2. PCs and Notebooks
3. Network Switches
4. Wearable Health and Fitness Devices
5. Telecom Infrastructures
6. Electronic Points of Sale

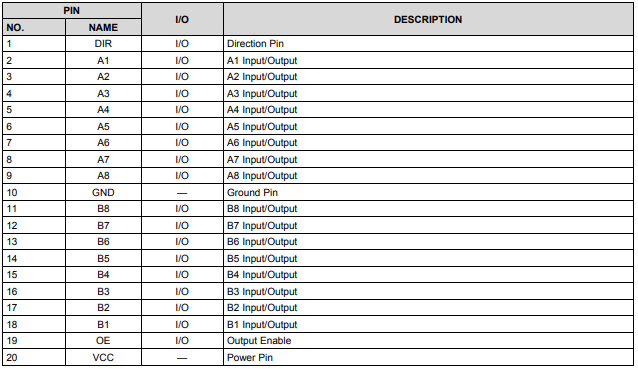

5. Pin Functions
6. Feature Description
The SNx4HC245 devices have a wide operating VCC range from 2 V to 6 V with slower edge rates to minimize output ringing.
7. Application Information
The SNx4HC245 is a low-drive CMOS device that can be used for a multitude of bus interface type applications where output ringing is a concern. The low drive and slow edge rates will minimize overshoot and undershoot on
the outputs.
