1. Description
These octal buffers and row drivers are specially designed Specially improve performance and density of tri-state memory address driver, clock Drivers, bus-oriented receivers and transmitter. HCT240 equipment is well organized As two with separate 4-bit buffers/drivers Output enable (OE) input. When OE is low, The device passes the reversed data from the A input to Y output. When OE is high, the output is In a high impedance state.
2. Feature
1. Operating Voltage Range of 4.5 V to 5.5 V
2. High-Current Outputs Drive Up To 15 LSTTL Loads
3. Low Power Consumption, 80-µA Max ICC
4. Typical tpd = 12 ns
5. ±6-mA Output Drive at 5 V
6. Low Input Current of 1 µA Max
7. Inputs Are TTL-Voltage Compatible
8. 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
3. Pin description

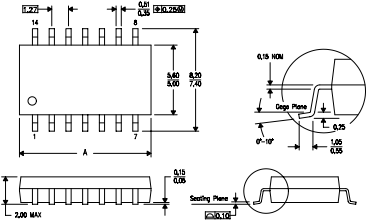

4. Product Size
