1. Describe
This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC1G07 device is open-drain and can be connected to other open-drain outputs for active-low wired or active-high wired-AND functionality. The maximum sink current is 32 mA. The SN74LVC1G07 is available in a variety of packages, including an ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.
2. Feature
1. Available in ultra-compact 0.64-mm2 Package with 0.5mm pitch (DPW)
2. Supports 5V VCC operation
3. Input and open-drain output accept Voltages up to 5.5 V
4. Can pan up or down
5. 4.2 ns maximum tpd at 3.3 V
6. Low power consumption, up to 10µA ICC
7. ±24mA output drive, 3.3V
8. Ioff supports live insertion, partial power down Mode and Backdrive Protection
9. Latch-up performance exceeds 100 mA per JESD 78, Class II
10. ESD protection exceeds JESD 22
– 2000-V mannequin (A114-A)
– 200-V machine model (A115-A)
– 1000V charging device model (C101)
3. Application
1. AV receiver
2. Blu-ray player and home theater
3. DVD burner and player
4. Desktop or laptop
5. Digital radio or Internet radio player
6. Digital Video Camera (DVC)
7. Embedded PC
8. GPS: Personal Navigation Device
9. Mobile Internet Devices
10. Network projector front end
11. Portable media player
12. Professional audio mixer
13. Smoke Detectors
14. Solid State Drives (SSD): Enterprise
15. High Definition (HDTV)
16. Tablet PC: Enterprise
17. Audio Dock: Portable
18. DLP forward projection system
19. DVR and DVS
20. Digital Photo Frame (DPF)
21. Digital camera
4. Pin configuration

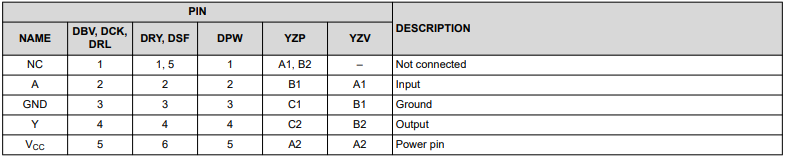

5. Pin Description
6. Feature Description
1. Wide operating voltage range.
– Operates from 1.65 V to 5.5 V.
2. Allows down voltage translation.
3. Inputs and outputs accept voltages to 5.5 V.
4. Ioff feature allows voltages on the inputs and outputs, when VCC is 0 V.
7. Application Information
The SN74LVC1G07 is a high drive CMOS device that can be used to implement a high output drive buffer, such as an LED application. It can sink 32 mA of current at 4.5 V making it ideal for high drive and wired-OR/AND functions. It is good for high speed applications up to 100 MHz. The inputs are 5.5 V tolerant allowing it to translate up/down to VCC.
