1. Describe
This single buffer/driver is designed for 1.65V to 5.5V VCC operation. SN74LVC1G240DBVR is a single-line driver with three-state output. When the output enable (OE) input is high, the output is disabled. NanoFree™packaging technology is a major breakthrough in the concept of IC packaging, using bare chips as packaging. To ensure that it is in a high-impedance state during power-up or power-down, OE should be connected to VCC through a pull-up resistor; the minimum value of the resistance is determined by the current sink capability of the driver. This device is fully suitable for partial power-off applications using Ioff. The Ioff circuit disables the output to prevent the damaged current from flowing back when the device is powered off.
2. Feature
1. Provide Texas Instruments NanoFree™ package
2. Support 5V VCC operation
3. The input can accept a voltage of 5.5 V
4. Provide downward translation to VCC
5. Maximum tpd at 3.3 V is 3.7 ns
6. Low power consumption, 10μA maximum ICC
7. ±24mA output drive voltage is 3.3V
8. Ioff supports live insertion, partial power-down mode and reverse drive protection
9. Latch up performance exceeds 100 mA, in line with JESD 78, Class II
10. ESD protection exceeds JESD 22
– 2000-V Human Body Model (A114-A)
– 200-V machine model (A115-A)
– 1000V charging equipment model (C101)
3. Pin configuration

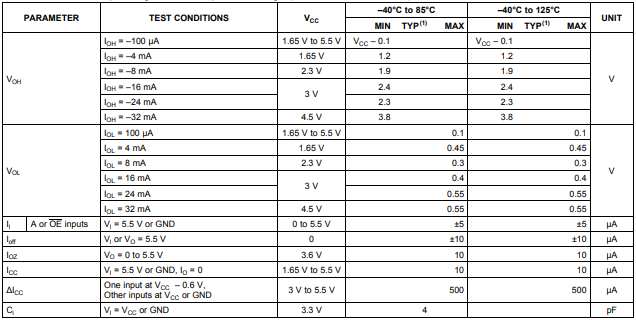

4. Electrical characteristics
