1. Description
This single analog switch is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak). NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
2. Features
1. Available in the Texas Instruments NanoFree™Package
2. 1.65-V to 5.5-V VCC Operation
3. Inputs Accept Voltages to 5.5 V
4. Max tpd of 0.8 ns at 3.3 V
5. High On-Off Output Voltage Ratio
6. High Degree of Linearity
7. High Speed, Typically 0.5 ns (VCC = 3 V,CL = 50 pF)
8. Low ON-State Resistance, Typically ≉5.5 Ω (VCC= 4.5 V)
9. Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
10. ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
3. Applications
1. Wireless Devices
2. Audio and Video Signal Routing
3. Portable Computing
4. Wearable Devices
5. Signal Gating, Chopping, Modulation or Demodulation (Modem)
6. Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems

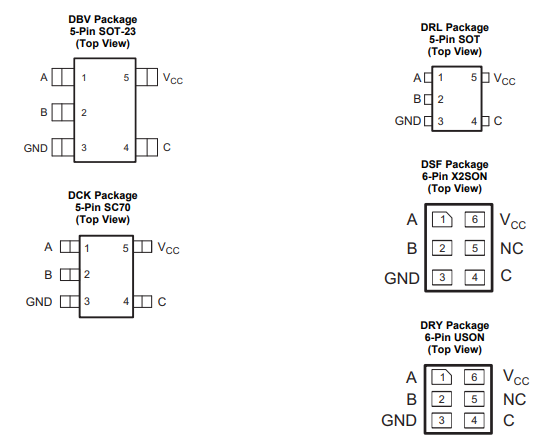

4. Pin Configuration and Functions

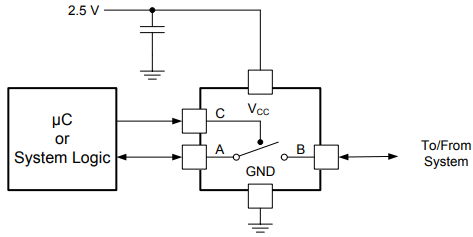

5. Typical Application
