1. Description
The SN75176BDR differential bus transceivers are designed for bidirectional data communication on multipoint bus transmission lines. They are designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27 The SN65176B and SN75176B devices combine a 3- state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. These ports feature wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications.
The driver is designed for up to 60 mA of sink or source current. The driver features positive and negative current limiting and thermal shutdown for protection from line-fault conditions. Thermal shutdown is designed to occur at a junction temperature of approximately 150°C. The receiver features a minimum input impedance of 12 kΩ, an input sensitivity of ±200 mV, and a typical input hysteresis of 50 mV.
2. Features
1. Bidirectional Transceivers
2. Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27
3. Designed for Multipoint Transmission on Long Bus Lines. in Noisy Environments
4. 3-State Driver and Receiver Outputs
5. Individual Driver and Receiver Enables
6. Wide Positive and Negative Input/Output Bus Voltage Ranges
7. ± 60-mA Max Driver Output Capability
8. Thermal Shutdown Protection
9. Driver Positive and Negative Current Limiting
10. 12-kΩ Min Receiver Input Impedance
11. ± 200-mV Receiver Input Sensitivity
12. 50-mV Typ Receiver Input Hysteresis
13. Operate From Single 5-V Supply
3. Applications
1. Chemical/Gas Sensors
2. Digital Signage
3. HMI (Human Machine Interfaces)
4. Motor Controls: AC Induction, Brushed and Brush- less DC, Low- and High-Voltage, Stepper Motors, and Permanent Magnets
5. TETRA Base Stations
6. Telecom Towers: Remote Electrical Tilt Units (RET) and Tower Mounted Amplifiers (TMA)
7. Weigh Scales
8. Wireless Repeaters
4. Simplified Schematic

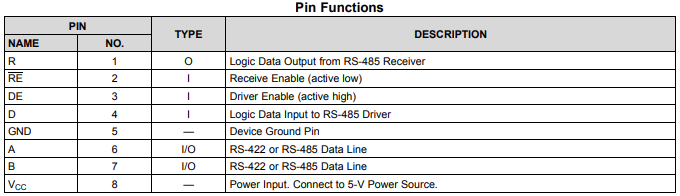

5. Pin Configuration and Functions

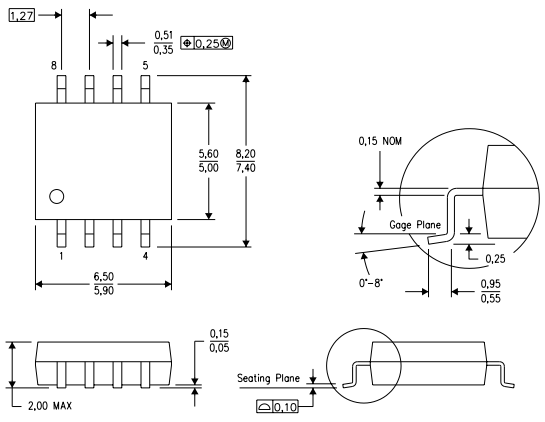

6. Package overview
