1. Describe
The SN65C1167, SN75C1167, SN65C1168 and SN75C1168PW dual drivers and receivers are integrated circuits designed for balanced transmission lines. These devices comply with TIA/EIA-422-B and ITU Recommendation V.11. The SN65C1167 and SN75C1167 combine dual tri-state differential line drivers and tri-state differential lines Receivers, both powered by a single 5V supply. The driver and receiver have active-high and active-low enables respectively, which can be connected together externally for direction control. The SN65C1168 and SN75C1168 drivers have separate active-high enables.
2. Feature
1. Meets or exceeds standard TIA/EIA-422-B and ITU Recommendation V.11
2. BiCMOS process technology
3. Low supply current requirement: 9 mA maximum
4. Low pulse offset
5. Receiver input impedance. . . 17 kΩ typical
6. Receiver input sensitivity. . . ±200 mV
7. Receiver common-mode input voltage range from −7 V to 7 V
8. Powered by a single 5V supply
9. Non-disturbing power-on/power-off protection
10. Receiver 3-state output active low enable only for SN65C1167 and SN75C1167
11. Improved replacement for MC34050 and MC34051
3. Pin configuration

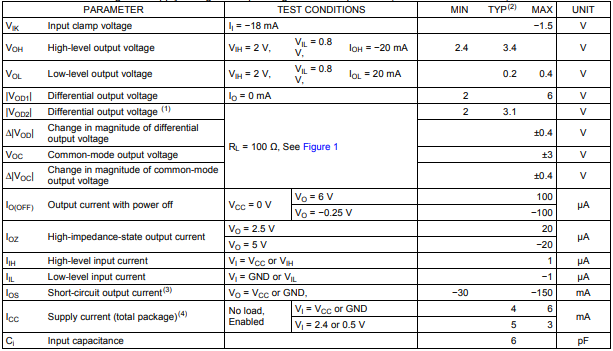

4. Electrical Characteristics
