1. Description
The SP202ECN-L/TR devices are a family of line driver and receiver pairs that meets the specifications of RS-232 and V.28 serial protocols. The devices are pin-to-pin compatible with MaxLinear's SP232A and SP233A devices as well as popular industry standard pinouts. The ESD tolerance has been improved on these devices to over ±15kV for Human Body Model. This series offers a 120kbps data rate under load, small ceramic type 0.1µF charge pump capacitors and overall ruggedness for commercial applications. Features include MaxLinear's BiCMOS design which allows low power operation without sacrificing performance. The series is available in lead free packages and includes commercial and industrial temperature ranges.
2. Features
1. Operates from a single +5V power supply
2. Meets all RS-232D and ITU V.28 specifications
3. Operates with 0.1µF to 10µF ceramic capacitors
4. No external capacitors required (SP233E)
5. High data rate - 120kbps under load
6. Low power CMOS operation
7. Lead-free packaging
8. Improved ESD specifications: ±15kV Human Body Model
3. Pin Configurations

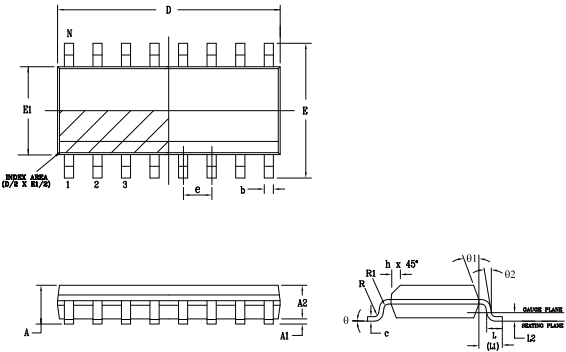

4. Product Size
