1. Describe
3 V for ST3232BTR and ST3232C devices Powering EIA/TIA-232 and V.28/V.24 Low power communication interface requirements and high data rate capability. These devices have a proprietary low dropout Transmitter output stage provides true RS-232 Performance from 3 to 5.5 V supply. This The device requires only four small 0.1 mF standard External capacitors for operation from 3 V supply. ST3232B and ST3232C have two receivers and two drivers. These devices are guaranteed to operate at data rates 250 kbps while maintaining RS-232 output Level. Typical applications are notebooks, Subnotebooks and Palmtops, Battery-Powered Devices, Handheld Devices, Peripherals and Printers.
2. Feature
1. 300 µA supply current
2. 300 kbps minimum guaranteed data rate
3. 6 V/µs Minimum Guaranteed Slew Rate
4. Complies with EIA/TIA-232 specification down to 3 V
5. Available in SO16, SO16L and TSSOP16 packages
3. Pin configuration

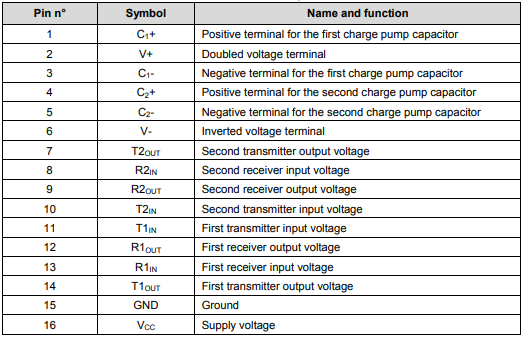

4. Pin Description
