1. Description
The STM32F030C8T6TR microcontroller integrates a high-performance Arm® Cortex®-M0 32-bit RISC core running at 48 MHz, high-speed embedded memory (up to 256 KB of flash memory and up to 32 KB of SRAM), and a wide range of enhanced external Set up and I/O. Standards are provided for all equipment Communication interface (up to two I²C, up to two SPI and up to six USARTs), a 12-bit ADC, seven general-purpose 16-bit timers, and an advanced control PWM timer. STM32F030x4/x6/x8/xC microcontrollers can operate in a temperature range of -40 to +85 °C, with a power supply voltage of 2.4 to 3.6V. A comprehensive set of energy-saving modes allows the design of low-power applications. STM32F030x4/x6/x8/xC microcontrollers include four different packaged devices The range is from 20 stitches to 64 stitches. According to the selected equipment, different groups Including peripheral equipment. The description below provides an overview of the full range Recommended STM32F030x4/x6/x8/xC peripherals.
2. Feature
1. Core: Arm® 32-bit Cortex®-M0 CPU, frequency Up to 48 MHz
2. Memories
– 16 to 256 KB of flash memory
– 4 to 32 KB of SRAM with hardware parity
3. CRC calculation unit
4. Reset and power management
– Digital and I/O power supply: VDD = 2.4 V to 3.6 V
– Analog power supply: VDDA = VDD to 3.6 V
– Power-on/power-down reset (POR/PDR)
– Low power consumption mode: sleep, stop, standby
5. Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x6 PLL option
– Internal 40 kHz RC oscillator
6. Up to 55 fast I/O
- All can be mapped to external interrupt vector
– Up to 55 I/Os with 5V tolerance
7. 5-channel DMA controller
8. A 12-bit, 1.0 µs ADC (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Separate analog power supply: 2.4 V to 3.6 V
9. Calendar RTC with alarm clock and regular wake-up function From stop/standby
10. 11 timers
– A 16-bit advanced control timer for Six-channel PWM output
– Up to seven 16-bit timers, up to four IC/OC, OCN, can be used for infrared control decoding
– Independent and system watchdog timer
– SysTick timer
11. Communication Interface
– Up to two I2C interfaces
– Fast Mode Plus (1 Mbit/s) support One or two I/Fs with 20 mA current sink
– SMBus/PMBus support (on a single I/F)
– Up to 6 USART support masters Synchronous SPI and modem control; one With automatic baud rate detection
– Up to two SPI (18 Mbit/s), 4 to 16 Programmable bit frame
12. Serial Wire Debug (SWD)
13. All packaging ECOPACK®2
3. Pin configuration

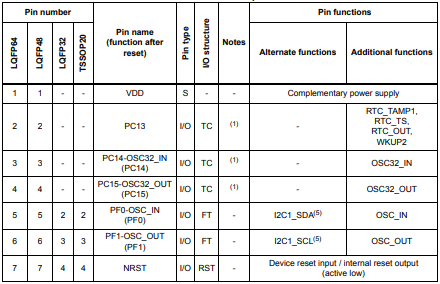

4. Pin description
