1. Describe
TEA1062 and TEA1062AT/C4, 112 are integrated circuits Perform all necessary voice and line interface functions Full electronic phone. They perform electronic Switch between dialing and voice. IC works on Line voltage as low as 1.6 V DC (degraded performance) Convenient to use more phone connections parallel lines.
2. Feature
1. Low DC line voltage; working voltage as low as 1.6 V (not including polarity protection)
2. Voltage regulator with adjustable static resistance
3. Supply power to external circuits
4. Symmetrical high impedance input (64 kΩ), suitable for dynamic, magnetic or piezoelectric microphones
5. Asymmetrical high impedance input (32 kΩ) for electret microphone
6. DTMF signal input, with a confident tone
7. Pulse or DTMF dial mute input
– TEA1062: High level active (mute)
– TEA1062A: active low (mute)
8. Receive amplifier for dynamic, magnetic or piezoelectric headphones
9. Wide range of microphone and earpiece amplifier gain settings
10. Line loss compensation for microphone and headphone amplifier (depending on line current)
11. Gain control curve adapts to exchange supply
12. DC bus voltage regulation facilities.

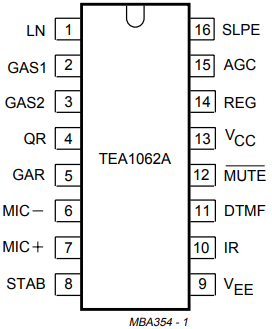

3. Pin configuration

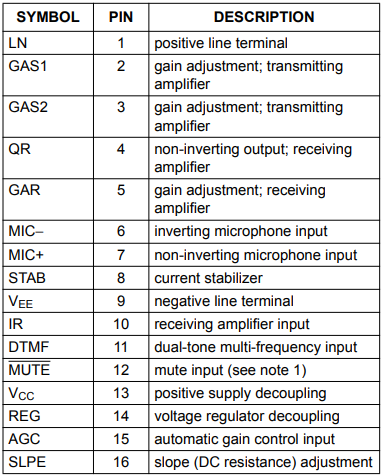

4. Pin description
