1. Description
TLV2371IDBVT Single Supply Operational Amplifier Provide rail-to-rail input and output functions. This TLV2371IDBVT uses the lowest operating power supply voltage As low as 2.7 V in the extended industrial range Temperature range, while increasing rail-to-rail output Swing function. TLV2371IDBVT also provides 3-MHz The bandwidth is only 550μA. Max The recommended power supply voltage is 16 V, which allows Equipment operated from (±8V power down To ±1.35 V). CMOS input can be used for high impedance Sensor interface, low voltage operation Become an ideal replacement product for TLV2371IDBVT Battery-powered applications. Rail-to-rail input The stage further improves its versatility. TLV2371IDBVT is The seventh member with a rapidly growing number TI provides RRIO products, this is the first Allows power rails up to 16V to operate with good AC power which performed. All members can be found in PDIP and SOIC, Singles in a small SOT-23 package, The quadrilateral in the MSOP and TSSOP packages. 2.7V working voltage makes TLV2371IDBVT compatible Lithium-ion power system and operating power supply The voltage range of many micro-power microcontrollers TI's MSP430 is available now.
2. Features
Rail-to-Rail Input and Output
1. Wide Bandwidth: 3 MHz
2. High Slew Rate: 2.4 V/μs
3. Supply Voltage Range: 2.7 V to 16 V
4. Supply Current: 550 μA/Channel
5. Low-Power Shutdown Mode
– IDD(SHDN): 25 μA/Channel
6. Input Noise Voltage: 39 nV/√Hz
7. Input Bias Current: 1 pA
8. Specified Temperature Range:
−40°C to +125°C (Industrial Grade)
9. Ultra-Small Packaging:
– 5- or 6-Pin SOT-23 (TLV2371)
– 8- or 10-Pin MSOP (TLV2371)
3. Applications
1. White Goods
2. Handheld Test Equipment
3. Portable Blood Glucose Systems
4. Remote Sensing
5. Active Filters
6. Industrial Automation
7. Battery-Powered Electronics
4. Pin Configuration

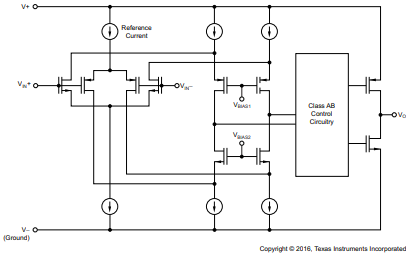

5. Functional Block Diagram

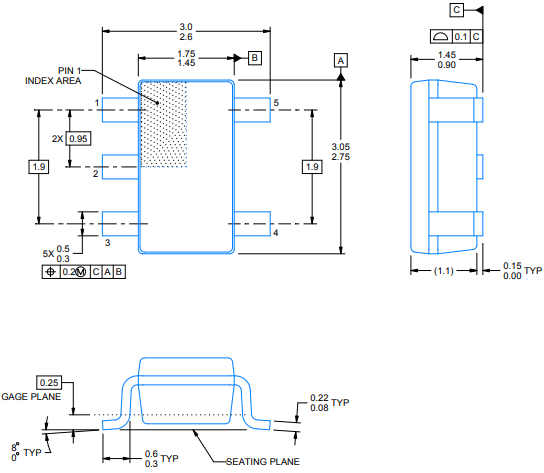

6. PACKAGE OUTLINE
