1. Describe
The TLV3011 is a low-power, open-drain output comparator; The TLV3012 is a push-pull output comparator. both Uncommitted on-chip voltage reference. Both have 5µA (max) quiescent current, input common mode range 200mV Beyond the rails and powered by a single supply 1.8V to 5.5V. Integrated 1.242V Series Voltage Reference Offers low drift of 100ppm/°C (max), stable up to 10nF Capacitive loads and outputs up to 0.5mA (typ) current. TLV3011 and TLV3012 feature tiny SOT23-6 A bag for space conservative designs. it can also be used for The SC70 package further saves board space. both Versions are specified for a temperature range of –40°C to +125°C.
2. Feature
1. Low quiescent current: 5µA (max)
2. Comprehensive reference voltage: 1.242V
3. Input common mode range: 200mV Beyond Rails
4. Reference voltage initial accuracy: 1%
5. Open-drain logic compatible output: TLV3011
6. Push-pull output: TLV3012
7. Low supply voltage: 1.8V to 5.5V
8. Fast response time: 6µs propagation delay, 100mV overdrive (TLV3011: RPULL-UP = 10kΩ)
9. Tiny packages: SOT23-6 and SC70-6

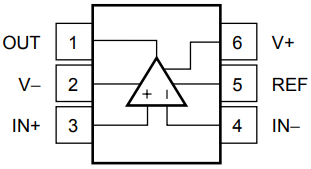

3. Pin configuration
4. Application
1. Battery level detection
2. Data collection
3. System monitoring
4. Oscillator
5. Sensor systems: smoke detectors, light sensors, sirens
5. Application Information
The TLV3011 is a low-power, open-drain comparator with On-chip 1.242V series reference. Open drain output Allows multiple devices to be driven by a single pullup resistor to complete the OR function, making the TLV3011 Useful for logic apps. TLV3012 Comparator with On-Chip 1.242V Family Reference Has Push-Pull Output Stage Best for Power Reduction No breakdown current for budget applications and functions. 2.8µA typical supply current combined with tiny package With a 1.8V supply requirement, the TLV3011 and The TLV3012 is best suited for battery and portable designs.
