1. Description
The TPS560430XFDBVT is an easy to use synchronous stepdown DC-DC converter capable of driving up to 600- mA load current. With a wide input range of 4 V to 36 V, the device is suitable for a wide range of applications from industrial to automotive for power conditioning from an unregulated source. The TPS560430 has 1.1-MHz and 2.1-MHz operating frequency versions for either high efficiency or small solution size. The TPS560430 also has FPWM (forced PWM) version to achieve constant frequency and small output voltage ripple over the full load range. Soft-start and compensation circuits are implemented internally which allows the device to be used with minimum external components. The device has built-in protection features, such as cycle-by-cycle current limit, hiccup mode short-circuit protection, and thermal shutdown in case of excessive power dissipation. The TPS560430 is available in SOT-23-6 package.
2. Features
1. Configured for Rugged Industrial Applications
– Input Voltage Range: 4 V to 36 V
– 600-mA Continuous Output Current
– Minimum Switching-On Time: 60 ns
– 98% Maximum Duty Cycle
– Support Startup with Pre-Biased Output
– Short Circuit Protection with Hiccup Mode
– ±1.5% Tolerance Voltage Reference over Temperature from –40°C to 125°C
– Precision Enable
2. Small Solution Size and Ease of Use
– Integrated Synchronous Rectification
– Internal Compensation for Ease of Use
– SOT-23-6 Package
3. Various Options in Pin-to-Pin Compatible Package
– 1.1-MHz and 2.1-MHz Frequency Options
– PFM and Forced PWM (FPWM) Options
– Fixed 3.3-V Output Option
4. Create a Custom Design Using the TPS560430 With the WEBENCH® Power Designer
3. Applications
1. Grid Infrastructure: Advanced Metering Infrastructure
2. Motor Drive: AC Inverters, VF Drives, Servos, Field Actuators
3. Factory and Building Automation: PLC, Industrial PC, Elevator Control, HVAC Control
4. Aftermarket Automotive: Camera
5. General Purpose Wide VIN Power Supplies
4. Pin Configuration

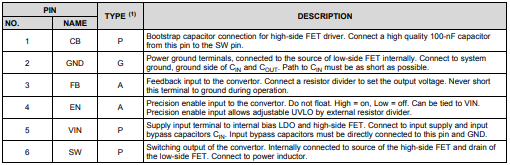

5. Pin Functions

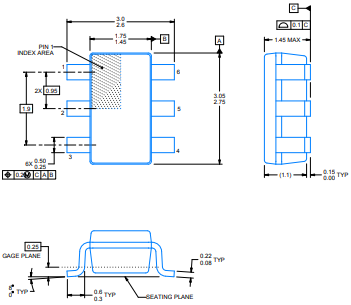

6. Package outline
