1. Description
The device is an off-line converter with an 800 V rugged power section, a PWM control, two levels of over-current protection, overvoltage and overload protections, hysteretic thermal protection, soft-start and safe auto-restart after any fault condition removal. Burst mode operation and device very low consumption help to meet the standby energy saving regulations. Advance frequency jittering reduces EMI filter cost. Brown-out function protects the switch mode power supply when the rectified input voltage level is below the normal minimum level specified for the system. The high voltage start-up circuit is embedded in the device.
2. Features
1. 800 V avalanche rugged power section
2. PWM operation with frequency jittering for low EMI
3. Operating frequency:
– 60 kHz for L type
– 115 kHz for H type
4. Standby power < 50 mW at 265 Vac
5. Limiting current with adjustable set point
6. Adjustable and accurate overvoltage protection
7. On-board soft-start
8. Safe auto-restart after a fault condition
9. Hysteretic thermal shutdown
3. Application
1. Auxiliary power supply for consumer and home equipments
2. ATX auxiliary power supply
3. Low / medium power AC-DC adapters
4. SMPS for set-top boxes, DVD players and recorders, white goods

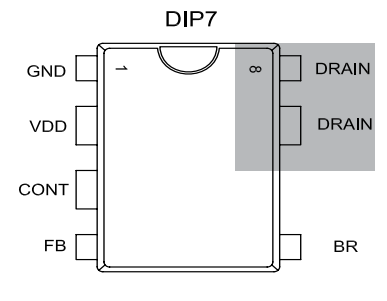

4. Pin settings

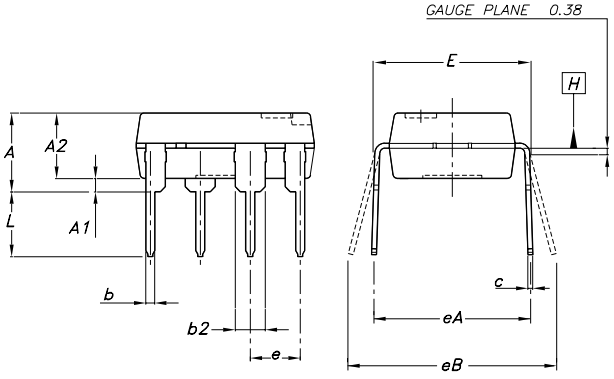

5. Package dimensions
