1. Features
1. BVCEO > 50V
2. BVCEV > 80V Forward Blocking Voltage
3. IC = 5A high Continuous Collector Current
4. ICM = 12A Peak Collector Current
5. Low Saturation Voltage, VCE(SAT) < 40mV @1A
6. RCE(SAT) = 24mΩ for a Low Equivalent On-Resistance
7. Complementary PNP Type: ZXTP2025F
8. Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
9. Halogen and Antimony Free. “Green” Device (Note 3)
10. Qualified to AEC-Q101 Standards for High Reliability
2. Mechanical Data
1. Case: SOT23
2. Case Material: Molded Plastic, “Green” Molding Compound UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
5. Weight 0.008 grams (Approximate)
3. Applications
1. MOSFET and IGBT Gate Driving
2. Motor Drive
3. Relay Lamp and Solenoid Drive
4. DC-DC Converters

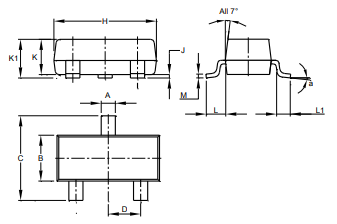

4. Package Outline Dimensions
