1. FFEATURES
1. Low profile package
2. Ideal for automated placement
3. Glass passivated chip junction
4. Available in uni-directional and bi-directional
5. 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
6. Excellent clamping capability
7. Very fast response time
8. Low incremental surge resistance
9. Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
10. AEC-Q101 qualified
11. Material categorization: for definitions of compliance
2. TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.

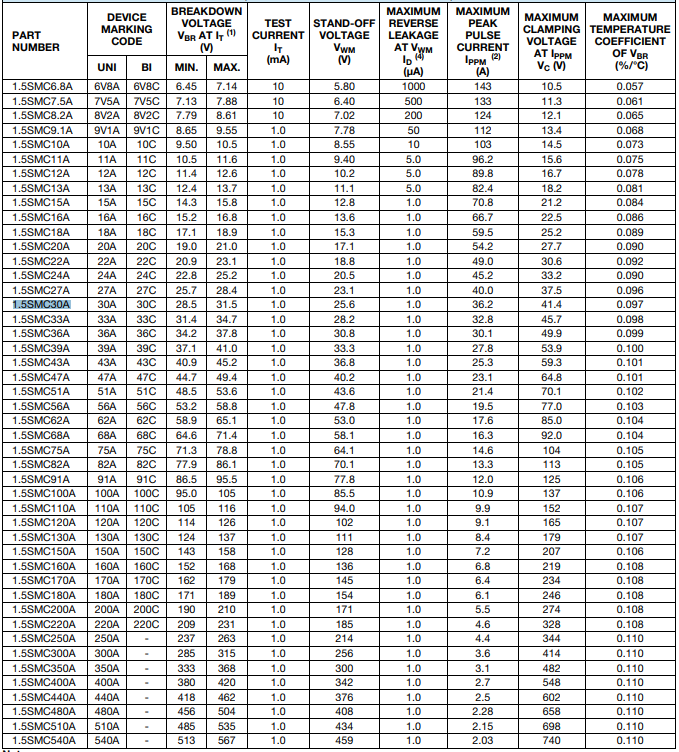

3. ELECTRICAL CHARACTERISTICS
4. THERMAL CHARACTERISTICS

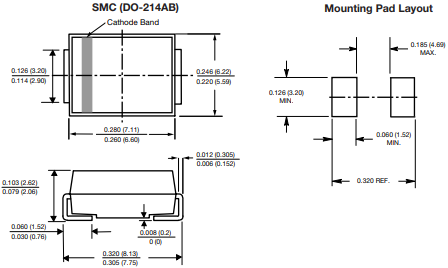

5. PACKAGE OUTLINE DIMENSIONS
