1. Description
The 30R Series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred.
2. Features
1. Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
2. Fast time–to-trip
3. RoHS compliant, Lead-Free and Halogen-Free*
3. Applications
1. USB hubs, ports and peripherals
2. Computers & peripherals
3. Motor protection
4. General electronics
5. Automotive applications

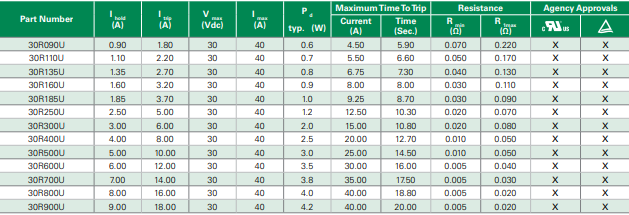

4. Electrical Characteristics
