1. Functional Description • Octal Bus Buffer
74HC541D: NON-INVERTING, 3-STATE OUTPUTS
The 74HC541D are high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate C 2MOS technology.
They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.
When either G1 or G2 are high, the terminal outputs are in the high-impedance state.
All inputs are equipped with protection circuits against static discharge or transient excess voltage.
2. Features
(1) High speed: tpd = 10 ns (typ.) at VCC = 6.0 V
(2) Low power dissipation: ICC = 4.0 µA (max) at T a = 25
(3) Balanced propagation delays: tPLH ≈ tPHL
(4) Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V
3. Pin Assignment
4. Packaging

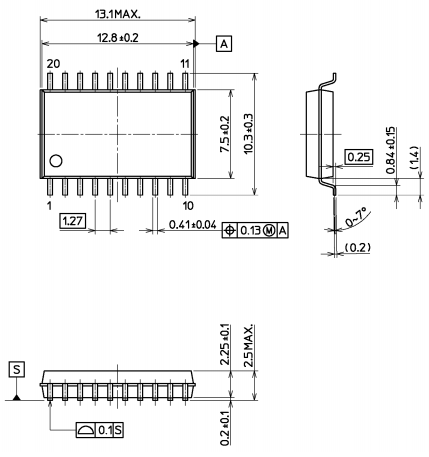

5. Package Dimensions
