1. Description
The 74HC573PW,118 is an 8-bit D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (OE) inputs. When LE is HIGH, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding D-input changes. When LE is LOW the latches store the information that was present at the inputs a set-up time preceding the HIGH-to-LOW transition of LE. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the latches. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2. Features and benefits
1. Input levels:
- For 74HC573: CMOS level
- For 74HCT573: TTL level
2. Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
3. Useful as input or output port for microprocessors and microcomputers
4. 3-state non-inverting outputs for bus-oriented applications
5. Common 3-state output enable input
6. Multiple package options
7. Complies with JEDEC standard no. 7 A
8. ESD protection:
- HBM JESD22-A114F exceeds 2 000 V
- MM JESD22-A115-A exceeds 200 V
9. Specified from -40 °C to +85 °C and from -40 °C to +125 °C
3. Pin configuration
4. Functional diagram

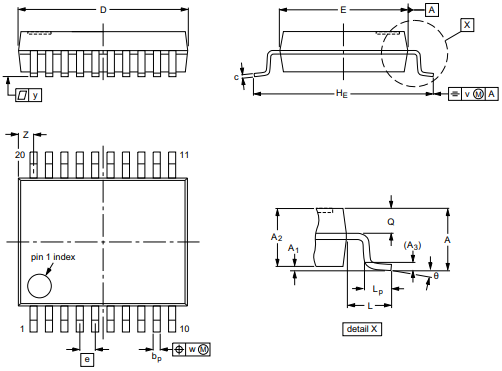

5. Package overview
